WUXI Wandi electric 6 / 12 cylinder diesel engine 110 to 690kw
| Place of Origin | WUXI city China |
|---|---|
| Brand Name | WUXI engine/ Wandi engine |
| Certification | ISO/TS16949 /ISO10012/ ISO14001/ISO18000 |
| Model Number | WD129D WD150D WD135 WD145 WD269 |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Poly wooden case |
| Delivery Time | 7 days |
| Supply Ability | 1000 sets / Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power(Prime/Standby) | 110kw To 682kw | Frequency | 50/60HZ |
|---|---|---|---|
| Speed | 1500RPM /1800RPM | Cylinder Type | 6 Cylinder And 12 Cylinder 4-stroke |
| Governor Type | Mechanical / Electric | Emmision Compliant | Stage II |
| Certificate | ISO9001/CE | Warranty | 1 Year Or 1000 Hours |
| High Light | four stroke diesel engine,air cooled diesel engine |
||
Product Description
WUXI Wandi electric 6 / 12 cylinder diesel engine 110 to 690kw
WUXI engine introduction:
1. Manufacturing off-highway diesel engines and corresponding components.
2. Wandi brand 6-cylinder and 12-cylinder diesel engines of 135, 138 and 145series, covering the power range from 110kw to 820kw.
3. The engine widely applied in power station, marine, firefighting and drilling industries.
SPECIFICATION:
| Engine model | Speed | Power (KW/PS) | |
| r/min | Rated power | Max power | |
| WD129D11 | 1500 | 110.3/150 | 121/165 |
| WD150D15 | 1500 | 141/192 | 155/211 |
| WD129TD16 | 1500 | 161.8/220 | 178/242 |
| WD129TD17 | 1500 | 176.5/240 | 194/264 |
| WD135TD19 | 1500 | 191.2/260 | 210/286 |
| WD129TWD19 | 1500 | 191.2/260 | 210/286 |
| WD129TAD19 | 1500 | 191.2/260 | 210/286 |
| WD129TAD23 | 1500 | / | 259/352 |
| WD129TAD25 | 1500 | 258/350 | 284/385 |
| WD135TAD28 | 1500 | 280/380 | 308/418 |
| WD145TAD30 | 1500 | 309/420 | 340/462 |
| WD145TAD33L | 1500 | 339/460 | 373/506 |
| WD145TAD35 | 1500 | 353/480 | 388/528 |
| WD258D22 | 1500 | 220.6/300 | 242.6/330 |
| WD240TD28 | 1500 | 280/380 | 308/418 |
| WD258TD30 | 1500 | 309/420 | 340/462 |
| WD269TD33 | 1500 | 339/460 | 373/506 |
| WD269TD35 | 1500 | 353/480 | 388/528 |
| WD269TD38 | 1500 | 382/520 | 420/572 |
| WD269TAD38 | 1500 | 382/520 | 420/572 |
| WD269TWD38 | 1500 | 382/520 | 420/572 |
| WD269TAD41 | 1500 | 418/568 | 460/625 |
| WD269TWD41 | 1500 | 418/568 | 460/625 |
| WD269TAD43 | 1500 | 432/588 | 475/646 |
| WD269TWD43 | 1500 | 432/588 | 475/646 |
| WD269TAD45 | 1500 | 465/632.5 | 512/696 |
| WD269TWD45 | 1500 | 465/632.5 | 512/696 |
| WD269TAD48 | 1500 | 482/656 | 530/721 |
| WD269TWD48 | 1500 | 482/656 | 530/721 |
| WD269TAD50 | 1500 | 506/688 | 556/757 |
| WD269TWD50 | 1500 | 506/688 | 556/757 |
| WD269TAD56 | 1500 | 560/762 | 616/838 |
| WD287TAD58 | 1500 | 580/788 | 638/868 |
| WD287TWD58 | 1500 | 580/788 | 638/868 |
| WD287TAD61L | 1500 | 618/840 | 680/924 |
| WD305TAD68 | 1500 | 682/928 | 750/1020 |
Description:
1. 6 cylinder and 12 v cylinder diesel power engines
2. Power range 110kw to 800kw
3. Machanical and electric governor
Applications:
1. Use for power station
2. Use for generators
3. Repair old generators
4. Use for water pump
5. Agricultural equipment
Competitive Advantage:
1. Produce 6 / 12 cylinders engines, power is bigger than other chinese brand engine
2. Low fuel is low
3. Use BOSCH electric board
4. GAC Diff Press , four valves per cylinder

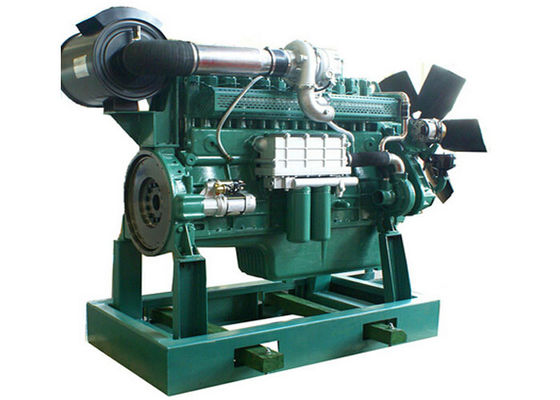

WUXI WANDI Engine photos:
