Silent Type Industrial Diesel Engines , 4 Stroke Air Cooled Diesel Engine

Place of Origin Jiangsu of China
Brand Name Power Friend
Certification ISO,CE Certification
Model Number PF-IS27
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 600 Set / Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engine Output Power 25KW Frequency 50/60HZ
Voltage 220v - 690v Optional Engine ISUZU
Genset Type Open Type, Silent Type Cylinder Type 4 Cylinder, 4 Stroke
Governor Type Electronically Consumption 240g/kw.h
Warranty One Year Or 1000 Hours
High Light

industrial diesel engines

,

air cooled diesel engine

Leave a Message
Product Description

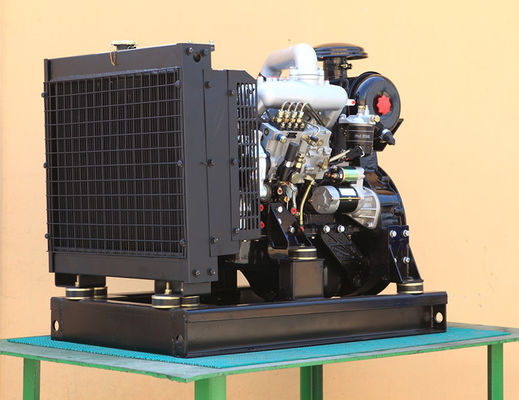

Japan brand diesel engine ISUZU 4JB1 for 20kw generators 50hz 60hz



Rated speed / frequency 1500RPM/50Hz
Continuous output(KW/KVA) 20/25
Standby output(KW/KVA) 22/27
Voltage, Phase and wire 400V/230V, 3 Phase and 4 Wires
Rated power factor 0.8(lagging)
Dimension(L*W*H) (mm) 2150*900*1050
Weight(kg) 1370
Rating Definitions (Operation at Altitude ≤1000m, Ambient temperature ≤ 40°C)
These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Diesel Engine
DIESEL ENGINE MODEL 4JB1
Engine Characters Water-cooled, 4 cylinders in line, 4-cycle, direct injection
The engine output(KW) 24
Aspiration Turbocharge
Bore(mm)×Stroke (mm) 102X120
Compression ration 17.5:1
Fuel consumption(L/H) 17.2(100% load)
Displacement(Liters) 5.9
Exhaust air flow(m3/min) 96
Compress air flow(m3/min) 5.1
Exhaust gas flow(m3/min) 14
Exhaust highest temperature 510
Lub-oil pan capacity(L) 16.4
Cooling water capacity(L) 22
Voltage for start(V) 24
Instrument for adjusting speed Electronically
Noise level(A)
ALTERNATOR
ALTERNATOR MODEL UP184F
Excitation Brushless
Insulation class H
Protection class IP22
Efficiency 90.20%
Voltage adjust range ±1% with 4% engine governing
Steady state voltage regulation ≤±1%
Voltage Control AVR



Silent Type Industrial Diesel Engines , 4 Stroke Air Cooled Diesel Engine 0



Silent Type Industrial Diesel Engines , 4 Stroke Air Cooled Diesel Engine 1



Applications:



1. Use for generators

2. Use for water pump

3. Repair old generators


Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours

If have any questions, please contact us. Your inquiry would be appreciated.
