Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm

Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm

  • High Light

    industrial diesel engines

    ,

    air cooled diesel engine

  • Power(Prime/Standby)
    21KW / 23KW
  • Frequency
    50/60HZ
  • Speed
    1500RPM /1800RPM
  • Cylinder Type
    4 Cylinder 4-stroke
  • Displacement(L)
    2.54L
  • Governor Type
    Mechanical
  • Emmision Compliant
    Stage II
  • Consumption
    240g/kw.h
  • Bore Diameter*Stroke(mm)
    90x100mm
  • Certificate
    ISO9001/CE
  • Warranty
    1 Year Or 1000 Hours
  • Place of Origin
    CHINA
  • Brand Name
    AOLING
  • Certification
    ISO9001 / CE / PVOC
  • Model Number
    3TNV88-GGE
  • Minimum Order Quantity
    1 SET
  • Price
    Negotiation
  • Packaging Details
    Poly wooden case
  • Delivery Time
    7 days
  • Payment Terms
    Western Union, L/C, T/T
  • Supply Ability
    1000 sets / Week

Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm

YANMAR ENGINE SELECTION:



Engine model intake type

Bore x

stroke

1h

power

12h power RPM Fuel consumption Displacement Dimension
3TNV88-GGE Nature 88x90 15.3 14 1500 223 1.642 765x530x770
4TNV88-GGE Nature 88x90 19.5 18 1500 221 2.192 835x530x770
4TNV88-GTE Turbo 88x90 27 24 1500 212 2.192 835x530x770
4TNV88-GLE Turbo 88x90 31 28 1500 210 2.192 835x530x770
4TNV88-AAE Turbo 88x90 40 36 1500 206 2.192 835x530x770





DISEL ENGINE SPECIFICATION:



2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand AO LING
2.2 Engine Model 3TNV88-GGE
2.3 Governor/Class Mechanical
2.4 Cylinder NO. 3
2.5 Engine build Line
2.6 start-up method 12V, electric
2.7 Battery capacity 100Ah
2.8 Fuel spray pattern Direct Injection
2.9 Aspiration Nature
2.10 Cooling mode Radiator cooled (enclose water)
2.11 Bore and stroke 88 × 90mm
2.12 Compression ratio 19.1:1
2.13 Displacement 1.642L
2.14 Engine Prime Power at 1500rpm 12.2kWm
2.15 Engine Standby Power at 1500rpm 13.2 kWm
2.16 Fuel type #0 Diesel (Natural temperature)
2.17 Filter system

Adopt whole changeable lubricating

oil, fuel filter and air filter

2.18 Exhaust system

Adopt industrial high efficiency

muffler and ripple pipe



Applications:



1. Use for generators ,  1500rpm and 1800rpm , 50HZ or 60HZ

2. Use for water pump

3. Repair old generators



Competitive Advantage:



1.Discharge approval EURO II standard, Low noise

2.Low fuel consumption 198g/KWh, reduce at least 8-10g/KWh.

3.Design exquisite , small volume, light weight and (these can better reduce the fuel consumption)

4. Small dimention

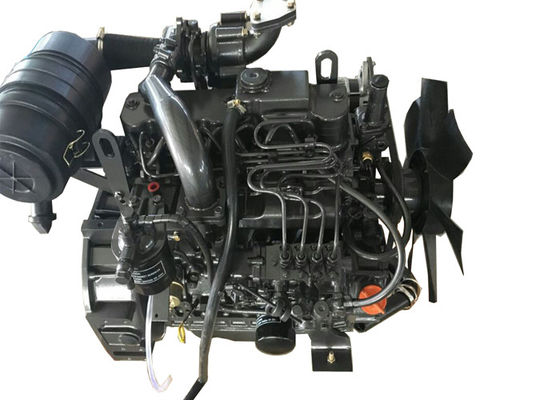

Engine photos:



Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm 0



Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm 1
